สปินเดิลมอเตอร์ระบายความร้อนด้วยลม / Air-Cooled Spindle Motor

j02_0464

aircooled-1

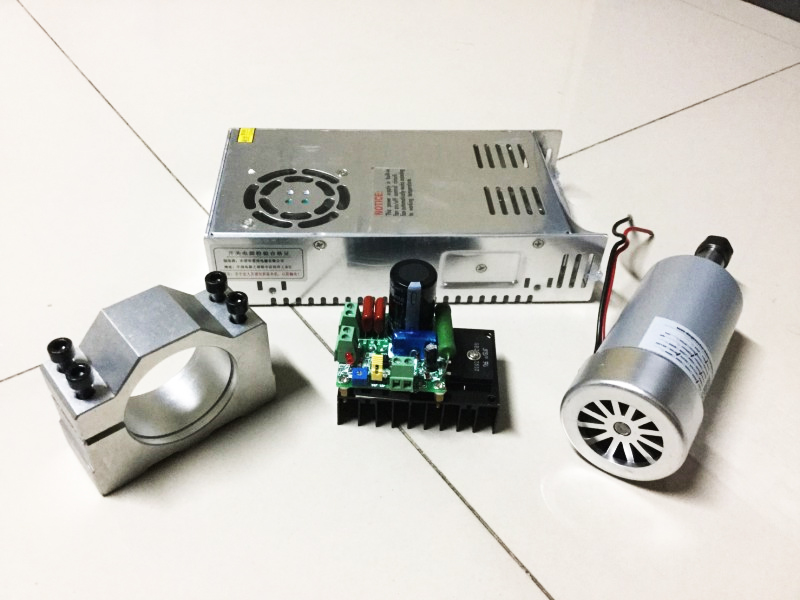

SPINDLE 300W

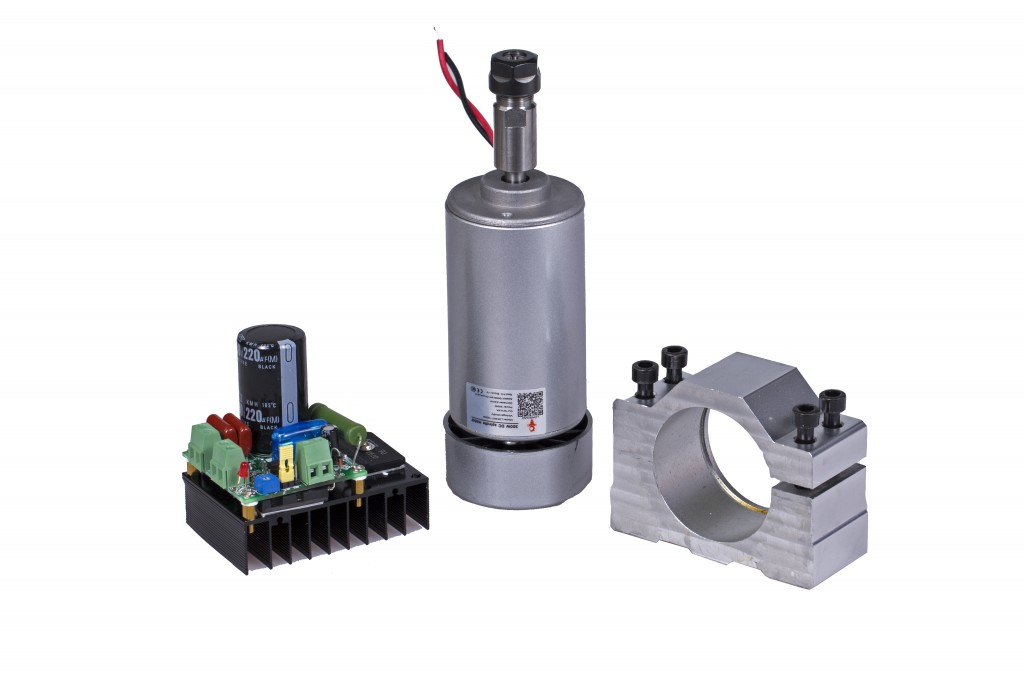

In set include Spindle motor, motor clamp, Driver circuit and power supply
Specification Value
Rated Speed 12,000 RPM
Power type DC
Coolant Air Cooled
Power 300 watts
Voltage 36 V
Motor Length 175mm
Diameter 52mm
Collet Size ER11

aircooled-2

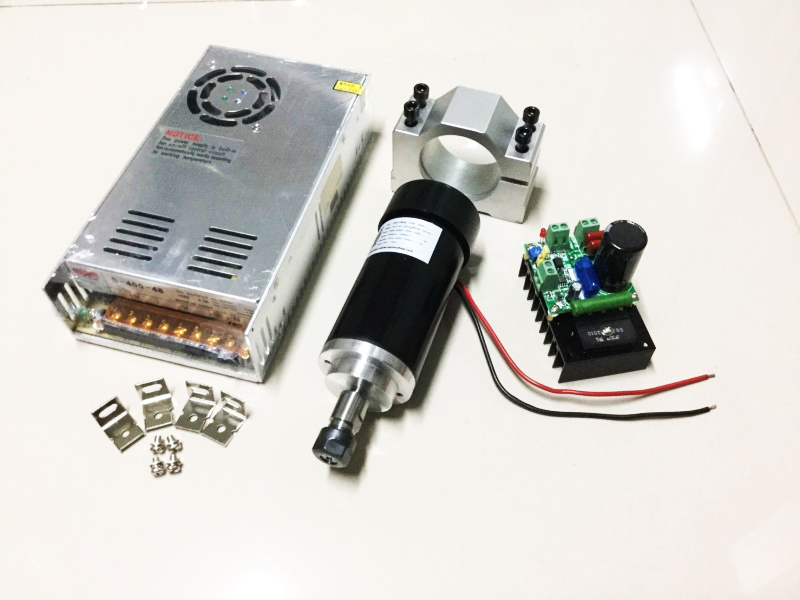

SPINDLE 400W
In set include Spindle motor, motor clamp, Driver circuit and power supply
Specification Value
Rated Speed 12,000 RPM
Power type DC
Coolant Air Cooled
Power 400 watts
Voltage 36 V
Motor Length 170mm
Diameter 52mm
Collet Size ER11

aircooled-3

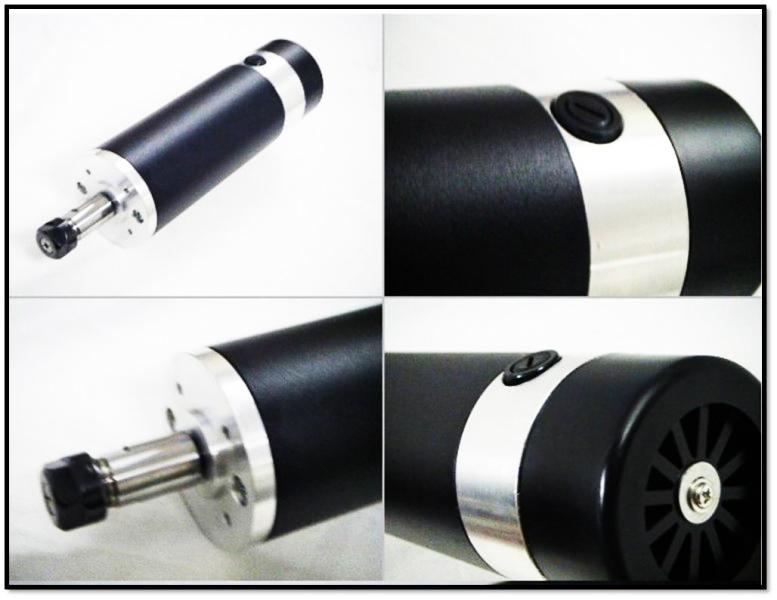

SPINDLE 600W
In set include Spindle motor, motor clamp, Driver circuit and power supply
Specification Value
Rated Speed 13,000 RPM
Power type DC
Coolant Air Cooled
Power 600 watts
Motor Length 170mm
Diameter 57mm
Collet Size ER11

รหัสสินค้า

Code

สินค้า

Product

ราคา

Price

550105-01030001Spindle:air cooled 300W 12-48V DC ER11+52mm Mount B7,500
550105-01040001Spindle:air cooled 400W 12-48V DC ER11+52mm Mount B7,900
550105-01060001SPINDLE 600 W ER11 COLLECT+ MOUNT BRACET13,000

*(ราคายังไม่รวมภาษีมูลค่าเพิ่ม)
