สเต็ปมอเตอร์ / Step motor : 270 Oz.in – 4000 Oz.in

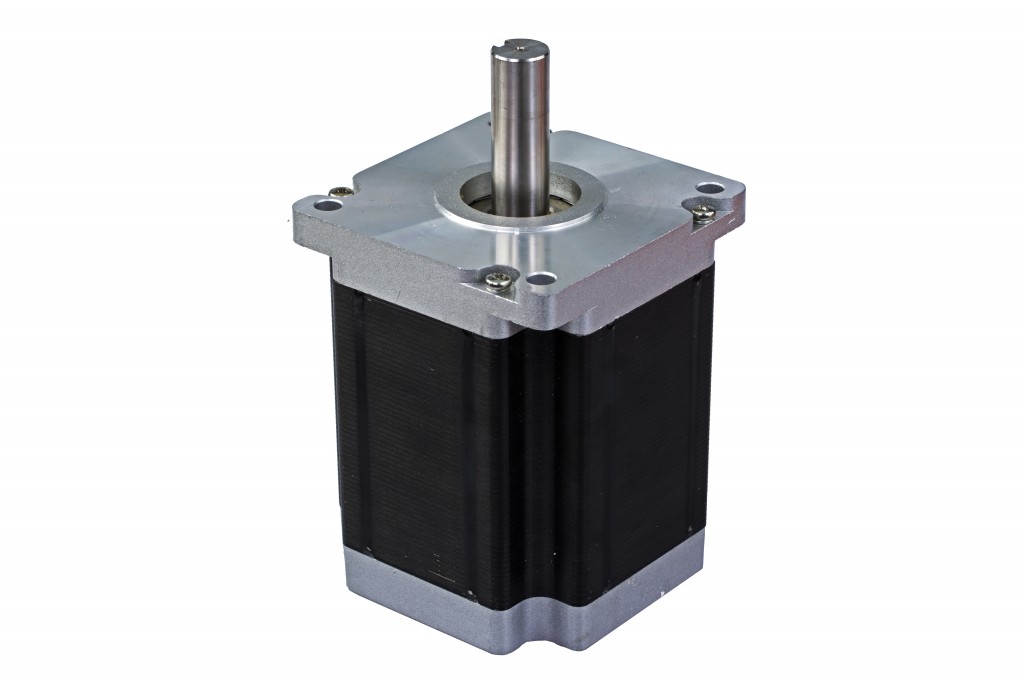

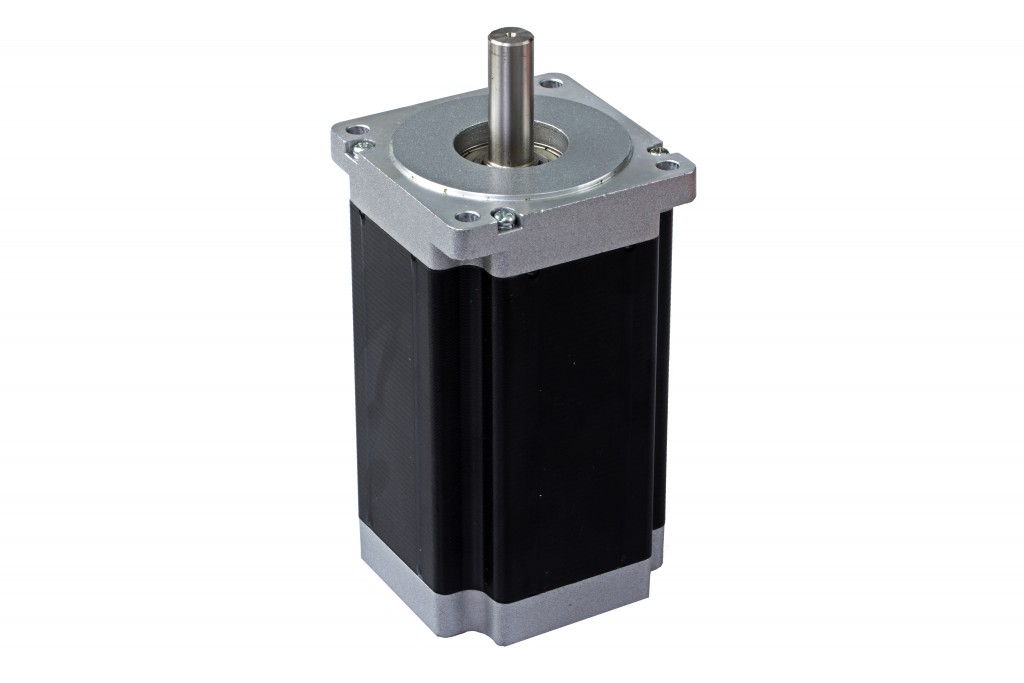

J02_0363J02_0366

รหัสสินค้า

Code

สินค้า

Product

ขนาดแอมป์

ampere

ความยาว

Length

ราคา

Price

550106-57760301STEP MOTOR 57STH76-3004A  3A.3762,000
550106-57112421STEP MOTOR 57STH112-4204A 4.2A.4.21122,500
550106-86115601STEP MOTOR 86STH115-6004AF 6.0A.61154,500
550106-86155601STEP MOTOR 86STH155-6004AF 6.0 A.61558,500

*(ราคายังไม่รวมภาษีมูลค่าเพิ่ม)

Genaral Specification:

ItemSpecifications
Step Angle1.8°
Temperature Rise80℃max
Ambient Temperature-20℃~+50℃
Insulation Resistance100 MΩ Min. ,500VDC
Dielectric Strength500VAC for 1minute
Shaft Radial Play0.02Max. (450g-load)
Shaft Axial Play0.08Max. (450g-load)
Max. radial force75N (20mm from the flange)
Max. axial force15N

Electrical Specification:

Model No.Motor LengthRated
Voltage
Current
/Phase
Resistance
/Phase
Inductance
/Phase
Holding Torque# of LeadsDetent TorqueRotor InertiaMass
 Single shaftmmVAΩmHkg.cmNo.kg.cmg.cmKg
SC57STH76-3004A764.83.01.66.83041.48001.6
SC57STH112-4204A1123.84.20.93.83041.48001.6
SC86STH115-6004A1153.66.00.66.58742.427003.8
SC86STH155-6004A1553.66.00.66.58742.427005.4
